Harman Kardon

Harman Kardon Citation Amplifier

Harman Kardon Citation Amplifier

£599.99 GBP
£599.99 GBP
Sale Sold out
Tax included.

SUPERIOR HARMAN KARDON AUDIO PERFORMANCE

The first truly premium product of its kind, the Harman Kardon Citation range is the ultimate in state-of-the-art audio from Harman Kardon, the world’s foremost purveyor of high fidelity audio products for over 65 years.



CLASS-D AMPLIFICATION FOR ALL YOUR ENTERTAINMENT

Upgrade your wired loudspeakers with Harman Kardon Class-D power and 200 watts per channel ( 4 ohms).



INNOVATIVE HARMAN KARDON DIGITAL LOOP AMPLIFIER TECHNOLOGY

Digital Loop Amplifier technology corrects the natural errors and distortion anomalies that occur in digital amplification, restoring audio quality to the way it was meant to be heard. Hear every note as the artist intended.



POWER AND STREAMING IN THE ULTIMATE STEREO AMPLIFIER

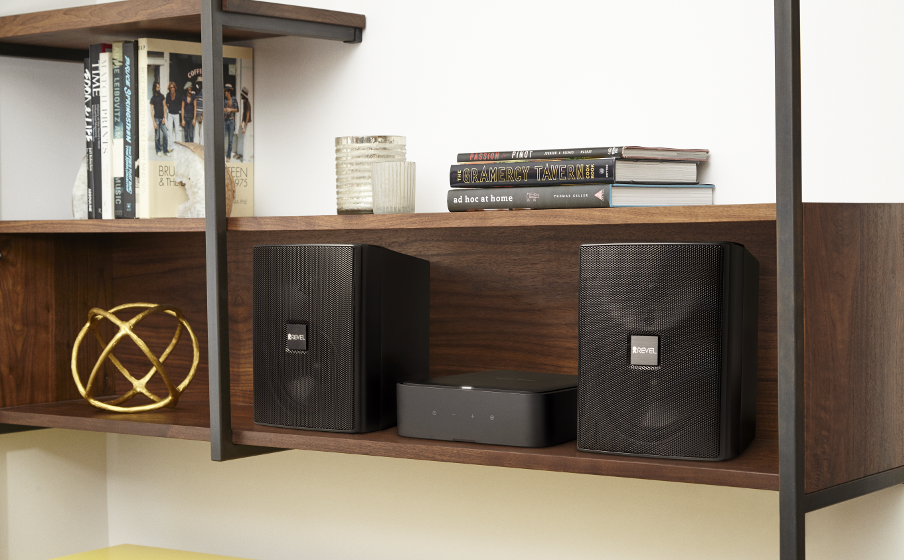

Bring it all together, beautifully and add the power of HD streaming to your home entertainment system with the Harman Kardon Citation Amp. Power your bookshelf, floor standing, in-wall, in-ceiling speakers, or use with other Citation products to create a multi-channel wireless surround sound system. All-new Digital Loop Amplifier technology delivers 200 watts per channel allowing you to enjoy music and movies the way they were meant to be heard, with the ultimate wireless streaming experience. Stream your favorite music with  Chromecast built-in™ and AirPlay or even connect to your TV via the included HDMI ARC output. The Citation Amp is also compatible with Control 4 and Creston command and control systems.

Item# HKCITATIONAMPBLKUK

General Specifications

Rated Output Power (8 ohms)125W RMS per channel
Rated Output Power (4 ohms)200W RMS per channel
Minimum Impedance4 Ohms
Frequency Response20Hz-20kHz +/- 0.5dB
Signal to Noise>110dB A-Weighted
Power Supply100-240V~50/60Hz
Power Consumption125W
Digital Input FormatsPCM, Dolby Digital

Audio Specifications

2.4G Wi-Fi Frequency Range2412 – 2472MHz (USA and Canada 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi Transmitter power≤20 dBm (EIRP)
2.4G Wi-Fi modulationDBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi transmitter power≤23dBm (EIRP)
5G Wi-Fi modulationQPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wi-Fi transmitter frequency range5.15~5.35GHz, 5.470~5.725GHz, 5.725~5.825GHz
5G WISA transmitter power≤14dBm (EIRP)
5G WISA modulationOFDM, BPSK, QPSK, 16QAM
5G WISA transmitter frequency range5.15~5.35GHz, 5.470~5.725GHz, 5.725~5.825GHz
Analog Input Maximum Input Level2V RMS

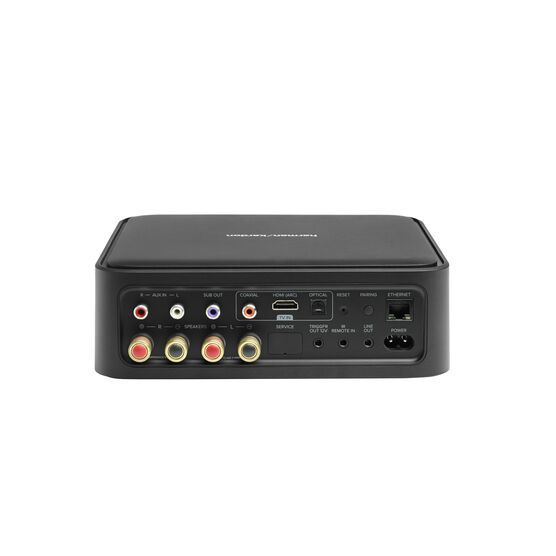

Analog Input1 Aux (Stereo RCA connector)
Digital Input1 Digital (HDMI ARC, Coax or Optical connector)
Audio Outputs1 Line Out, 1 Subwoofer Out
Left/Right Channel Mono SummingYes
Subwoofer outputMono Summing or Crossover Mode
Subwoofer Crossover Frequencies50 - 120Hz

Dimensions

Dimensions (W x H x D)8.5" x 3" x 9" (215 x 75 x 230mm)
Rack Height2RU
Weight5.3 lb (2.4 kg)
Packaging Dimensions (W x H x D)12.8" x 11" x 4.8" (326mm x 280mm x 121mm)
Packaging Weight (Gross)6.8 lb (3.1 kg)

Control and Connection Specifications

Tone ControlsBass, Treble
Maximum Volume Control0 - 100 % of maximum power
Bluetooth version4.2
Bluetooth Frequency Range2402MHz-2480MHz
Bluetooth Transmitter power≤10 dBm (EIRP)
Bluetooth Transmitter modulationGFSK, π/4 DQPSK, 8DPSK
Wi-Fi network compatibility802.11 a/b/g/n/ac
Other ConnectionsEthernet, IR Remote Input, 12V trigger output
